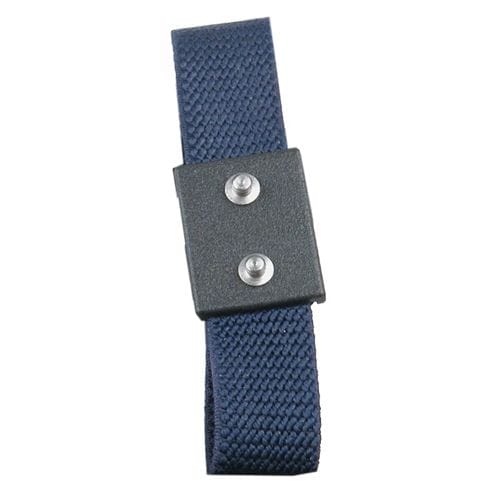

WRISTBAND, JEWEL, ELASTIC, DUAL, ONYX, 4MM SNAP

$10.09

Product SKU: 19691
Minimum Order Quantity: 1
Manufacturer: Desco
Stock Quantity: 124

Check/Validate Stock Quantity New!

Our goal is to become your #1 source for electronic production supplies. With thousands of available products from top brands, we have everything your business needs to function at its best.

  • Promotion: Free shipping
  • Fast shipping with tracking on your account
  • 30 Day Satisfaction Guarantee
  • Phone or Email Customer Service

In stock (can be backordered)

Description
    • Patented (US patents 6,052,053 and 6,205,408) Dual Wire Wrist Strap provides redundancy
      Even if one dual wire wrist strap conductor is severed, operator has reliable path-to-ground with other wire
    • Use with resistive loop technology continuous monitor
      Continuously verifies the proper resistance to ground of the operator
    • Solid stainless steel wrist band stud machined to exacting tolerances and precise profile
      Ensures reliable path-to-ground connection to spring loaded 4mm stainless steel constant contact coil cord snap
    • Durable, lightweight fabric
      Some users prefer the softness, comfort and flexibility of this material
    • Has silver impregnated nylon knitted on inside for superior conductivity
      Reliably removes generated static charges
    • Made with pure silver irreversibly bound to fibers providing both antimicrobial and anti-odor performance
    • Adjustable
      Only one item to stock; may be fitted to almost all people
  • Locking clasp
    Band locked so it will not slip
  • Unique patented (US patent 4,662,695) adjustment design eliminates exposed conductive �tail� of band
    Provides added safety eliminating chance of providing inappropriate ground path
  • Medical grade 300 series stainless steel used for all metal parts
    Eliminates allergic skin reaction for most people
  • Non-shedding, non-sloughing band material
    Safe for microelectronics
  • Date coded
    Providing lot traceability to ensure quality control
  • Lifetime warranty on our wrist band stud
  • Superior resistor connection strain relief
    Superior reliability. Greatly exceeds ESD S1.1 Bending Life Test. Tested at over 11,000,000 cycles vs. the 16,000 requirement
  • Compatible with 3M and other brand continuous monitors
  • To see Jewel® MagSnap® adjustable wristband illustration, click here
  • Made in the United States of America
    This item is made and stocked in Chino, CA

    Estimated Shipping Weight: 0.04 Pounds

    What the ESD Association says about testing wrist straps:

    Per ESD Handbook TR20.20 section 5.3.9.1 Wrist Strap Checkers – “Wrist strap checkers have historically been the primary tool for testing the operation of the wrist strap system including, the wristband, grounding cord and most importantly, the electrical integrity of the contact between the wristband and the wearer. Wrist strap checkers measure the resistance of the entire system.”

    Jewel™ Wrist Bands meet and exceed the Wrist Band and Wrist Cord requirements of ANSI/ESD S20.20.

    ANSI/ESD S20.20 Paragraph 6.2.2.1 Personnel Grounding Requirement “All personnel shall be bonded or electrically connected to ground or contrived ground when handling ESD sensitive items. When personnel are seated at ESD protective workstations, they shall be connected to the common point via a wrist strap system.”
