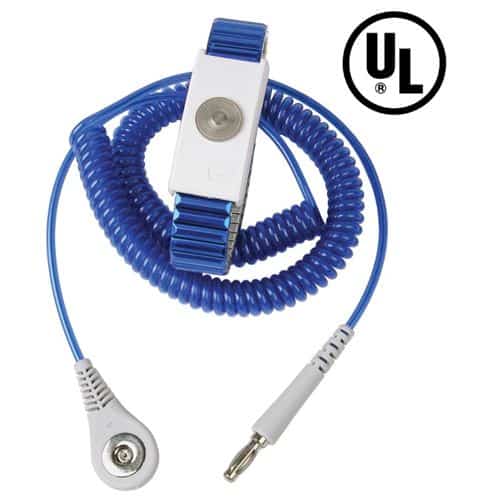

- Metal Expansion Wristband and Coil Cord
Creates a path-to-ground for an operator with resistance <3.5 x 107 ohms per the required limits of ANSI/ESD S20.20, tested per ANSI/ESD S1.1 or ESD TR53.
WRIST STRAP
- Patented1 Magnetic Connection Between Wrist Band and Coil Cord
Superior electrical connection to eliminate intermittent failures of traditional extends the lifespan of the wrist strap. Maintains 1-5 pound release to prevent accidental disconnects and increased safety.
- Highly Visible Color
Bright colors allow supervisor to see that worker is wearing wrist strap.
- Patented2 Size Adjustment
Designed to allow the operator to adjust the size (circumference: 5.75″ – 13″) to their wrist.
- Medical Grade Series Stainless Steel Backplate and Links
Creates a more reliable path-to-ground3 for the operator.
- Solid Stainless Steel Machined Snap Stud
Solid material will provide a consistent 1-5 pound release to prevent accidental disconnects between wristband and cord.
COIL CORD
- 12 Foot (18 Inches of Coils) Coil Cord
- Strain Relief Tests Over 1 Million Cycles; 62 Times The Minimum Requirement Per ESD S1.1
Eliminates intermittent failures that occur with less durable cords and extends the lifespan of the wrist strap.
- Patented4 Banana Plug
Designed to prevent wear to banana springs that will leads to accidental disconnects from banana jacks.
- Relaxed Retraction Coil Cord
Soft pull does not tug on the wearer’s arm.
- Low Profile Snap Design
Prevents cord from being disconnected or getting in the way of operator’s work area.
- Date Coded
Provided so that the lifespan of the product may tracked and to ensure quality control.
- UL Listed
Meets UL requirements to ensure operator safety.
- Made in the United States of America
This item is made and stocked in Chino, CA
References
1. Magnetic snap assembly for connecting grounding cord to electrically conductive body band
2. Patent Number 5,586,351 – Adjustable Antistatic bracelet with snap-assembled permanent
3. Metal expansion bracelet style wrist cuffs may trap moisture underneath and can be more effective for people with dry skin.”
[ESD Handbook TR20.20 section 5.3.2.4.3]
Patent Number 5,951,337 – Damage-Resistant Electrical Connector Plug and Combination
