Hakko FR811-SET Complete SMD Hot Air Rework System

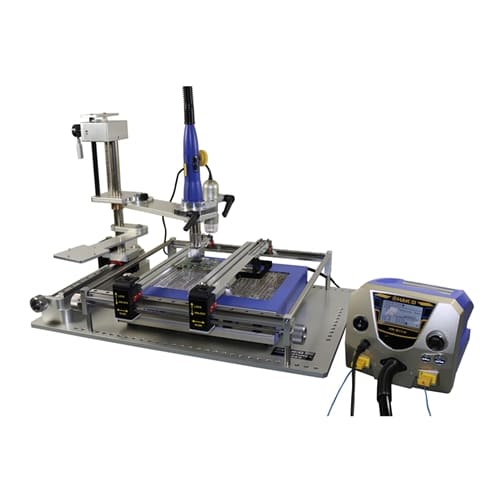

A complete, economical SMD hot air rework system, including the HAKKO FR-811 hot air station, bottom heater, handpiece rework fixture, board holder and vision system.
Hakko FR811-SET Features
- Model Name: FR-811
- Input Voltage: 120 VAC 50/60 Hz
- Power Consumption: 820W
- Heater Power Consumption: 790W
- Airflow Source: Turbine
- Airflow Capacity1: Setting 1-100% (115 L/min. Max)
- Vacuum Function: Yes
- Temperature Range: 120° – 1120°F (50° – 600°C)
- Thermocouple Inputs: 2 – Type K
- External Connections: 1 – USB – A
- Operating Modes: Manual or Automatic
- Memory: 50 x 6 Stage + Preheat
- Process Control: Password Lockout
- Auto Power Off Safety: Yes
- Auto Cooling Safety: Yes
- Presets: 6-User Programmable
- Handpiece Length (w/o Cord): 9.8 in (250 mm)
- Handpiece Weight (w/o Cord): 0.40 lb. (180 g)
- Nozzles (not included): N51 Series
- Standard Dimensions: 6.3 x 5.7 x 8.7 in.
- Station Weight: 3.3 lb. (1.5 kg)
- ESD Safe: Yes
