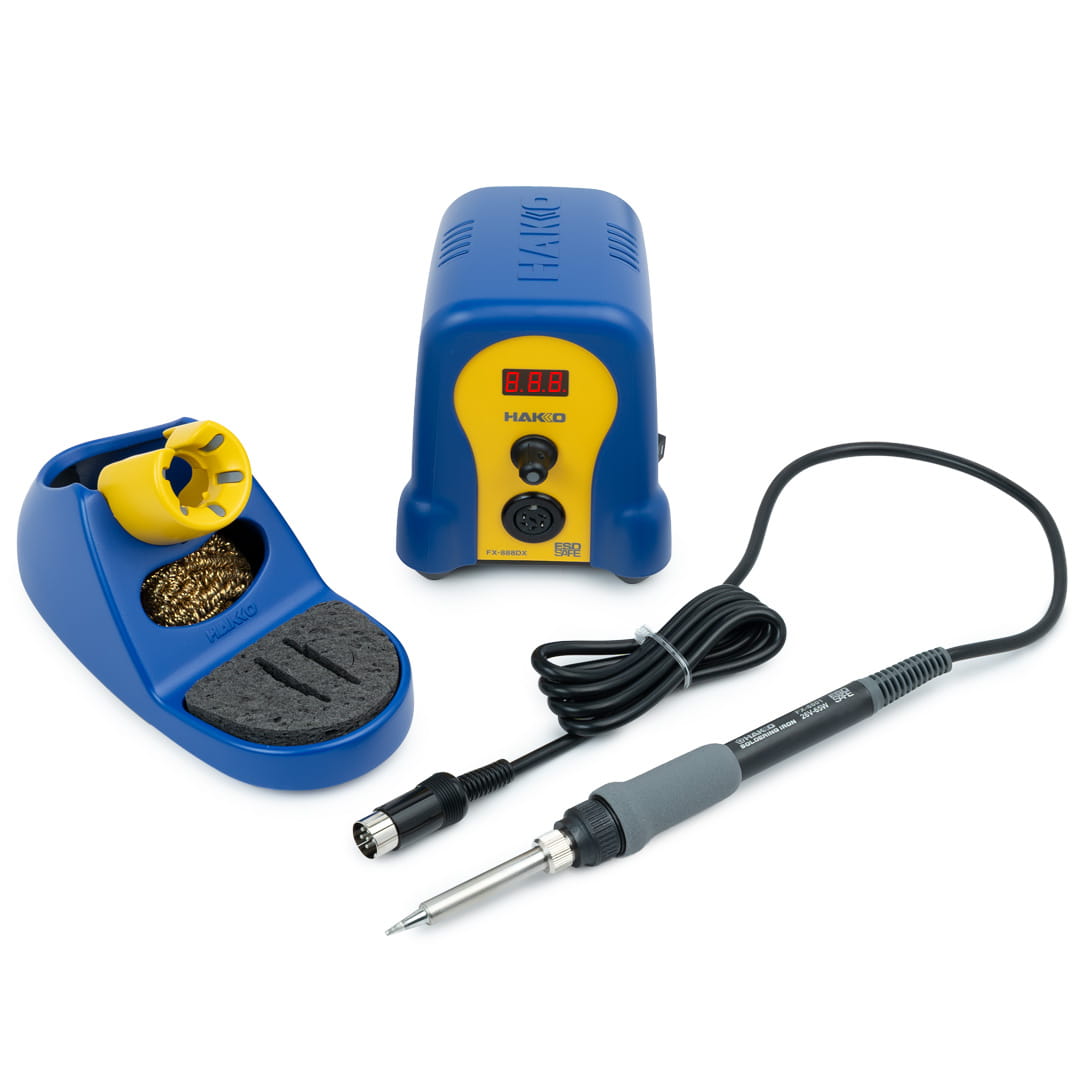

The HAKKO FX-888DX Digital Soldering Station delivers precise, repeatable temperature control in a compact, ESD-safe package. Microprocessor control with closed-loop sensing holds the tip within ±1°C across a 50°C – 480°C range, while up to five programmable presets let you switch between common working temperatures instantly. The station pairs with the FX-8801 handpiece and HAKKO True Ceramic™ heating element for fast recovery and long tip life, and is available in three housing colors to suit any bench.
Specifications
- Model: FX-888DX
- Part No. / Housing Color: FX888DX-010BY (Blue/Yellow), FX888DX-010SV (Silver), FX888DX-010YW (Yellow)
- Input Voltage: 120 VAC 50/60 Hz
- Power Consumption: 100 W
- Temperature Range: 50°C – 480°C (120°F – 899°F)
- Temperature Stability1: ±1°C / ±1.8°F
- Temperature Control: Microprocessor control using closed-loop sensor
- Temperature Presets: 2 to 5 (Default is 5)
- Dimensions (W x H x D) – Station: 100 x 120 x 125 mm (3.9 x 4.7 x 4.9 in.)
- Dimensions (W x H x D) – Shipping: 240 x 185 x 240 mm (9.5 x 7.3 x 9.5 in.)
- Weight – Station: 1.2 kg (2.6 lb.)
- Weight – Shipping: 2.1 kg (4.6 lb.)
- ESD Safe: Yes
- Safety Approval: cMETus
Station
- Output Voltage: AC 26 V
- Outer Dimensions (W x H x D): 100 x 120 x 125 mm (3.7 x 5.0 x 4.8 in.)
- Weight: 1.2 kg (2.6 lb.)
Handpiece
- Model: FX-8801
- Part No.: FX8801-02
- Power Consumption: 65 W (26 V)
- Tip-to-Ground Resistance: <2 Ω
- Tip-to-Ground Potential: <2 mV
- Heating Element: HAKKO True Ceramic™
- Tips: T18 Series
- Standard Tip (Included): T18-D16
- Cord Length/Reach: 1.2 m (3.9 ft.)
- Handpiece Length (w/o cord)2: 217 mm (8.5 in.)
- Handpiece Weight (w/o cord)2: 46 g (1.6 oz.)
