Excelta Cutters – Standoff Shear Large Frame – For Connector Pins – Carbon Steel

$316.60

Product SKU: 907-5-030
Minimum Order Quantity: 1
Manufacturer: Excelta
Stock Quantity: Check Stock Quantity

Check/Validate Stock Quantity New!

Our goal is to become your #1 source for electronic production supplies. With thousands of available products from top brands, we have everything your business needs to function at its best.

  • Promotion: Free shipping
  • Fast shipping with tracking on your account
  • 30 Day Satisfaction Guarantee
  • Phone or Email Customer Service

Description

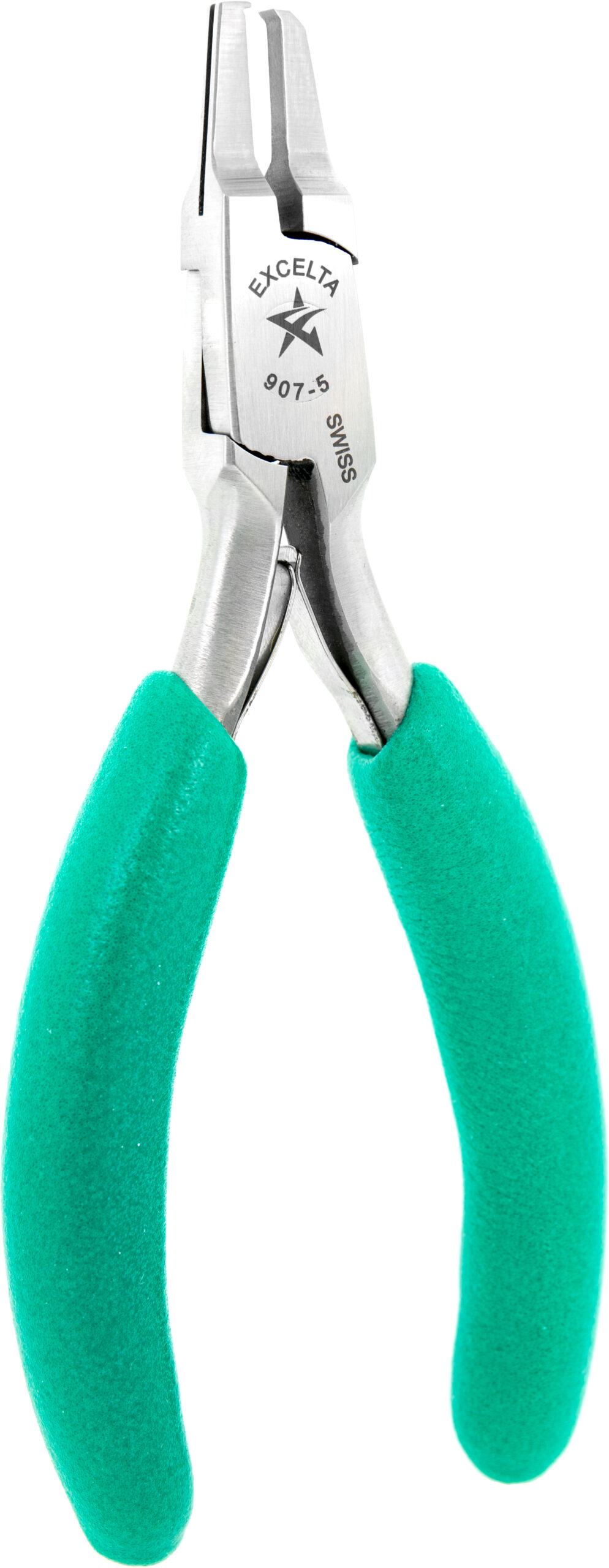

Excelta Cutters – Standoff Shear Large Frame – For Connector Pins – Carbon Steel

The 907-5-030 5.25″ connector pin shear cutting plier is designed with grooves on the outside of the jaws to fit between connector pins and provide a clean cut. The tip width is 1.00″. Recommended cutting capacity is 22AWG (.025″ diameter). Standard stand-off is .030″. It features soft cushioned ergonomic Anti-Static grips (10?? ohms/sq surface resistivity) with dual leaf springs for smooth action.

  • Product Type: Stand off’ Shear Cutters
  • Application: Designed with grooves on the outside of the jaws to fit between connector pins and provide a clean cut
  • Precision Level: 5 Star
  • Surface Resistivity: 10?? ohms/sq
  • Shape: Straight
  • Trade Name: TealShield?
  • Material: Carbon
  • Tip Size (CTM): .10″ (2.5mm) dia.
  • Body Width:
  • Body Height: 0.26″ (6.5mm)
  • Tip Angle:
  • Type of Cut: Shear
  • Max Cut Capacity (IN): .025″
  • Max Cut Capacity (MM): .63 mm
  • Max Cut Capacity (AWG): 22AWG
  • OAL: 5.25″ (131.25mm)
  • Net Weight (Ounces): 7.6
  • Prop 65: Yes
