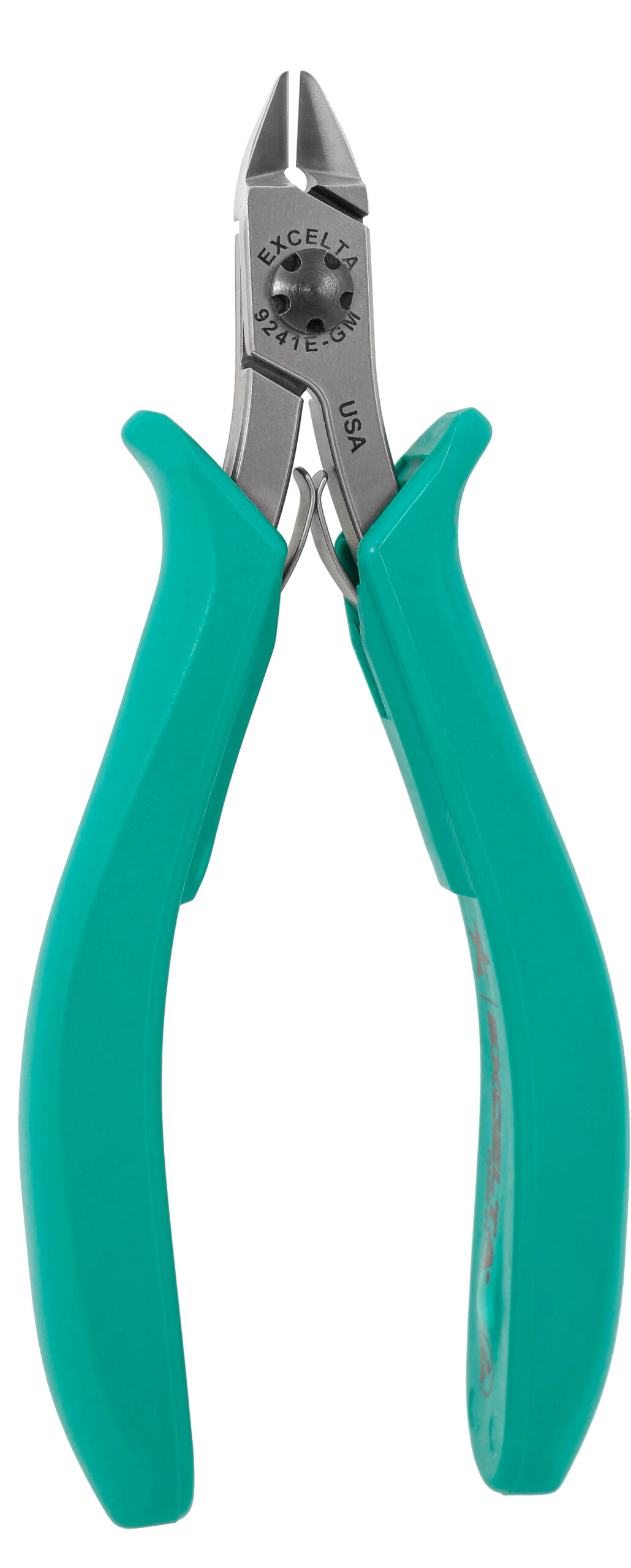

Excelta Cutters – Medium Oval Head -Optimum Flush – Molded Grip


Product SKU: 9241E-GM
Minimum Order Quantity: 1
Manufacturer: Excelta

Check/Validate Stock Quantity New!

Our goal is to become your #1 source for electronic production supplies. With thousands of available products from top brands, we have everything your business needs to function at its best.

  • Promotion: Free shipping
  • Fast shipping with tracking on your account
  • 30 Day Satisfaction Guarantee
  • Phone or Email Customer Service


Excelta Cutters – Medium Oval Head -Optimum Flush – Molded Grip

The 9241E-GM Lazer Line? medium oval optimum flush cutter has a cutting capacity of .005″ – .040″ soft wire. It is made of carbon tool steel with induction hardened cutting blades to RHC 63-65. The CNC machining allows the joint surfaces to be perfect to allow for long life. The dual leaf springs provide smooth action. The Anti-Static grips are ergonomically molded and have a surface resistivity of 10?? ohms/sq.

  • Product Type: Side Cutters
  • Application: Designed for cutting .040″ soft wire leaving a small ‘pinch’ on the wire
  • Precision Level: 4 Star
  • Surface Resistivity: 10?? ohms/sq
  • Shape: Round Head
  • Trade Name: TealShield?/Lazer Line?
  • Material: Carbon
  • Tip Size (CTM): .003″ x .005″ (.08mm x .12mm)
  • Body Width:
  • Body Height: .25″ (6.25mm)
  • Tip Angle: 14.25?
  • Type of Cut: Optimum Flush
  • Max Cut Capacity (IN): .005 – .040″
  • Max Cut Capacity (MM): .13 – 1 mm
  • Max Cut Capacity (AWG): 36 – 18 AWG
  • OAL: 4.5″ (112.5mm)
  • Net Weight (Ounces): 3
  • Prop 65: No
