Excelta Cutters – Long Nose Fine .02″ x .015″ Tip – Relieved Head

Excelta Cutters – Long Nose Fine .02″ x .015″ Tip – Relieved Head

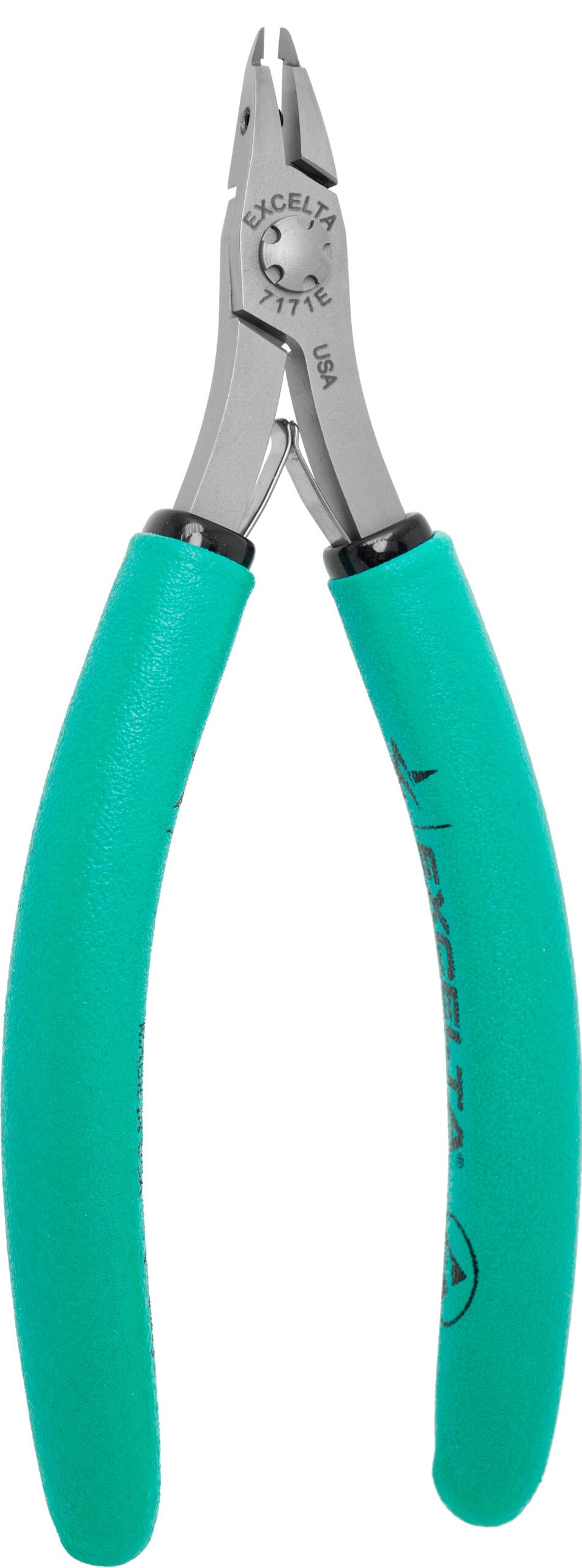

The 7171E Lazer Line? small fine tip laser flush cutter has a cutting capacity of .001″ – .010″ soft wire. It is made of carbon tool steel steel with induction hardened cutting blades to RHC 63-65. This overall length is 5.75″ . The CNC machining allows the joint surfaces to be perfect to allow for long life. The Anti-Static grips are soft cushioned foam and have a surface resistivity of 10?? ohms/sq. The dual leaf springs provide smooth action.

• Product Type: Specialty Cutters
• Application: Ideal for work on SMD boards – offers the smallest tips available
• Precision Level: 5 Star
• Surface Resistivity: 10?? ohms/sq
• Shape: Relieved Head
• Trade Name: TealShield?/Lazer Line?
• Material: Carbon
• Tip Size (CTM): .02″ x .015″ (.5mm x .38mm)
• Body Width:
• Body Height: .25″ (6.25mm)
• Tip Angle: 16?
• Type of Cut: Lazer Flush
• Max Cut Capacity (IN): .001 – .010″
• Max Cut Capacity (MM): .03 – .25 mm
• Max Cut Capacity (AWG): 40 – 30 AWG
• OAL: 5.75″ (143.75mm)
• Net Weight (Ounces): 3
• Prop 65: Yes
