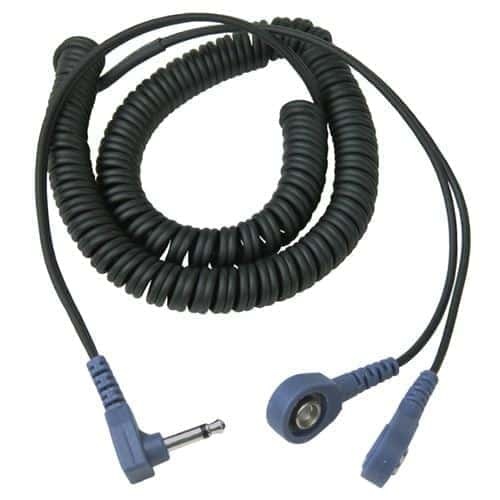

DUAL COIL CORD, 12′, 7MM SNAPS, RIGHT ANGLE 3.35MM PLUG

• Patented (US patents 6,052,053 and 6,205,408) Dual Wire Coil Cord provides redundancy
  Even if one conductor is severed, operator has reliable path-to-ground with other wire
• Use with resistive loop technology continuous monitor
  Continuously verifies the proper resistance to ground of the operator
• Custom manufactured right angle mono-plug
  Reduces chance of accidental disconnects, providing more secure ground connection
• One Megohm Series Resistor
  To protect operator from accidental contact with equipment line voltage.
• UL listed
  Independent review of the adequacy of the product’s design.
• 28 gauge wire
• 3.5mm phono plug connector
• Superior warranty
• This item is stocked in Chino, CA.

  Estimated Shipping Weight: 0.10 Pounds

Per ESD Handbook TR20.20 paragraph 5.3.2.2.2 Wrist Strap Ground Cord, “At first glance, the ground cord appears to be a relatively simple assembly. However, the design requirements are considerable, given the wide range of user applications and the durability requirements of constant tugging, flexing, and dragging over the edge of workstation tops and equipment chassis.”
