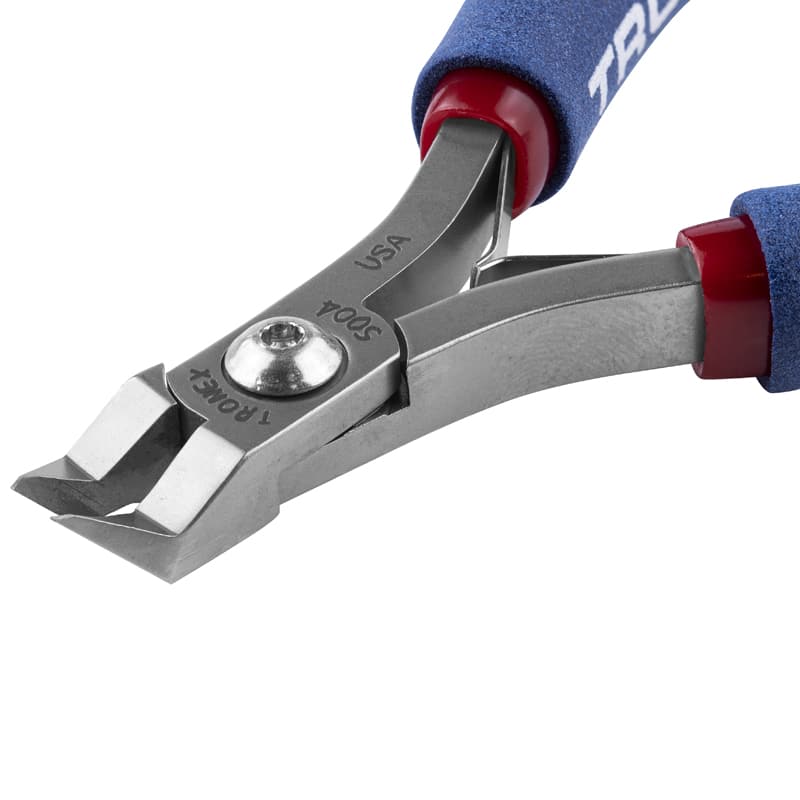

CUTTER, 50 DEGREE TAPER FLUSH STANDARD

$90.61

Product SKU: 5004
Minimum Order Quantity: 1
Manufacturer: Tronex

Check/Validate Stock Quantity New!

Our goal is to become your #1 source for electronic production supplies. With thousands of available products from top brands, we have everything your business needs to function at its best.

  • Promotion: Free shipping
  • Fast shipping with tracking on your account
  • 30 Day Satisfaction Guarantee
  • Phone or Email Customer Service

Description
  • Application: Cutting edges at an angle to the board are preferred when access to the object being cut is very limited or when the work area is very crowded. 5004 features a large cutting edge with a pointed tip and short jaw for enhanced control.
  • Head Shape: Angulated 50° Large Taper Head
  • Profile: Standard
  • Material: Carbon Steel
  • Material Hardness: 62-63 HRC
  • Cutting Edge: Flush
  • Cutting Capacity (soft copper wire): .008″ – .031″ (.2mm – 0.8mm); 32-20 AWG
  • Handle Length: Standard
  • Handle Grips: Cushion Double Sheathed, ESD Safe
    • RTT Resistance: <1 x 1011 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials
  • Overall Length: 4.7″ (119mm)
