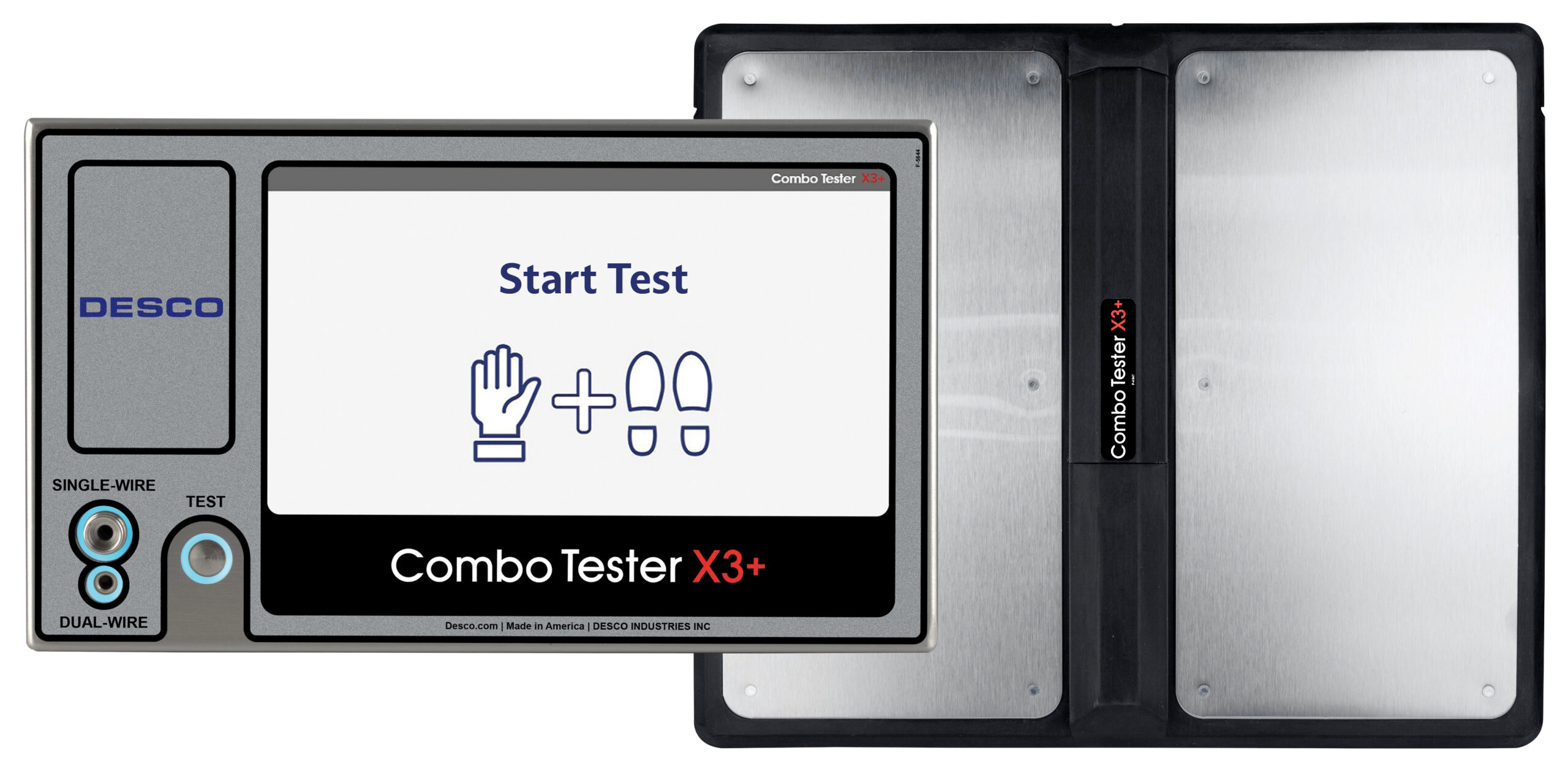

COMBO TESTER X3+, WITHOUT POWER CORD

• NEW?7 Inch Resistive Touchscreen
  Accepts input from gloved operators
• NEW?3-Prong Safety Certified Power Adapter
  Supplies ground without the need for additional wiring
• NEW?Replaceable Dual-Wire Wrist Strap Jack
  Minimizes service downtime
• NEW?VGA Video Output
  Mirrors the display onto an external monitor
• Tests Operator?s Path-To-Ground; Wrist Strap Limits 750 kilohms to 10 megohms, Footwear Limits 750 kilohms to 35 megohms¹
  Verifies the functionality of the operator?s personal grounding devices (wrist straps², foot grounders, ESD shoes, smocks³)
• Displays Resistance Measurements
  Indicates the performance of ESD wrist straps and footwear
• Programmable Test Limits
  Meets the test requirements of ANSI/ESD S20.20 or other standards
• Normally Open and Normally Closed Relay Terminals
  Pairs with a turnstile, automatic door, or other locking system to control access to ESD Protected Areas (EPAs)
• Simultaneous Testing in Less Than 2 Seconds
  Reduces time spent testing personal grounding devices used in ESD Control Plans? ?
• Split Foot Plate for Testing Foot Grounders (or Shoes)
  Tests both foot grounders independently at the same time
• Multiple Language Settings
  Displays the user interface in English, Spanish, Japanese, Chinese (Simplified), Turkish, Thai, or French
• Power Cord Sold Separately
• 50581?Power Cord, North America
• 50545?Power Cord, Europe
• 50546?Power Cord, UK
• NIST Calibrated ? Original Calibration Certificate can be Downloaded Here
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• Made in the United States of America
  This item is made and stocked in?Chino, CA

?

1. Default test limits listed. Additional test settings are noted in the technical bulletin.
2. The Combo Tester X3+ can verify both single-wire and dual-wire wrist straps.
3. The Combo Tester X3+ will also test a Groundable Static Control Garment System. The Groundable Static Control Garment System must have an RTG of < 3.5 x 10⁷ ohms to meet the required limit of ANSI/ESD S20.20-2007 tested per ANSI/ESD STM2.1 and ESD TR53.
