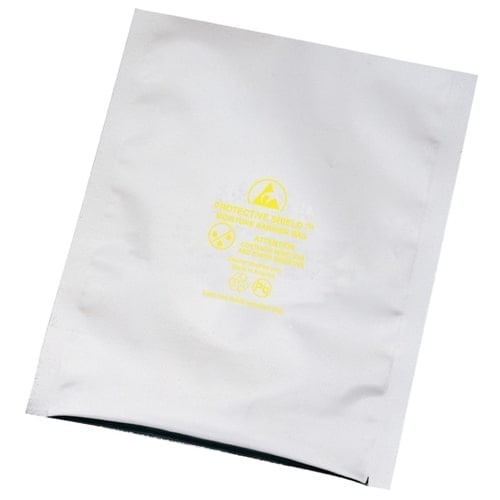

BAG, STATSHIELD, EMI/RFI, MBB, 6.5 MIL 22”x20”, 100 EA/PACK

BAG, STATSHIELD, EMI/RFI, MBB, 6.5 MIL 22”x20”, 100 EA/PACK

• Film Laminate Metal Layered 0.0065”  (6.5 mil) Thick Bag
  Designed for ESD/EMI/RFI protection, moisture control, high frequency and electrostatic discharge shielding. Meets ANSI/ESD S20.20 and ANSI/ESD S541 specs.
• </= 0.014 Grams Moisture Vapor Transfer Rate (MVTR)
  Designed for dry packing of moisture sensitive devices and to protecting contents from damage due to ESD events or EMI.
• >30lb Puncture Strength Average per FTMS 101C/4046
  Physically protects contents; designed for vacuum sealing
• <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31
  Protects contents from ESD charges and discharges. Meets the requirement for static shielding per ANSI/ESD S541, ANSI/ESD S20.20, and EIA 541
• Dissipative Inner and Outer Surfaces Rtt < 1 x 10¹¹ ohms per ANSI/ESD STM11.11
  Allows bag to be grounded when placed on a grounded surface
• Vacuum Deposited Metal Layer
  Makes the bag softer, more flexible, and less likely to tear or rip during use.
• Lead-free RoHS compliant
• Made in the United States of America
  This item is made and stocked in Canton, MA

The bag’s material meets the performance specification requirements of ANSI/ESD S541.

“…it is important to take possible temperature exposure into account when shipping electronic parts. It is particularly important to consider what happens to the interior of a package if the environment has high humidity. If the temperature varies across the dew point of the established interior environment of the package, condensation may occur. The interior of a package should either contain desiccant or the air should be evacuated from the package during the sealing process. The package itself should have a low WVTR.” (ESD Handbook TR20.20 section 5.4.3.2.2)

Sold in packages of 100 bags packaged in a protective oversized ESD bag

ANSI/ESD S541 Section 6.2 Outside an EPA:

“Transportation of sensitive products outside of an EPA shall require packaging that provides:

1. Low charge generation
2. Dissipative or conductive materials for intimate contact
3. A structure that provides electrostatic dischargeshielding.”

Desco’s bags are recyclable

Mixed unsortable plastic scrap shall contain assorted plastics of multiple grades that are co-extruded, bonded or laminated together which are unsortable into individual grades.

Desco ESD Bags Are Generally Reusable
For best results, bag inventory should be continually replenished. It is recommended that standard packs of bags should be stored in its original packaging in a climate controlled environment where the temperature ranges from 45 degrees F to 70 degrees F and relative humidity is 50%.  Bags should not be stored in ultraviolet sunlight, moisture, or heat because the aluminum shielding layer could oxidize if exposed to these conditions.
