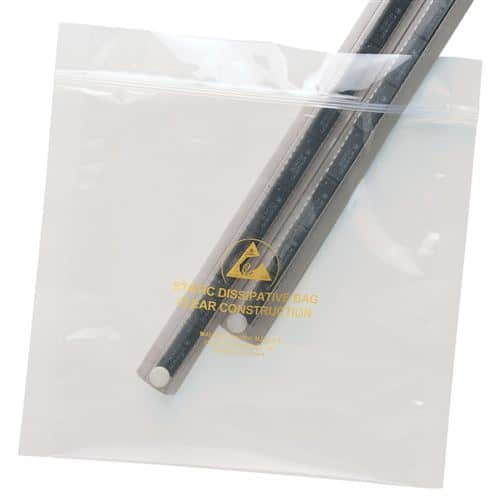

BAG, STATFREE, CLEAR, ZIP 5”x8”, 100 EA/PACK

$21.71

Product SKU: 13881
Minimum Order Quantity: 1
Manufacturer: Desco
Stock Quantity: 139

Check/Validate Stock Quantity New!

Our goal is to become your #1 source for electronic production supplies. With thousands of available products from top brands, we have everything your business needs to function at its best.

  • Promotion: Free shipping
  • Fast shipping with tracking on your account
  • 30 Day Satisfaction Guarantee
  • Phone or Email Customer Service

In stock (can be backordered)

Description
  • Choice where shielding is not required
    For packaging ESD sensitive item or non-ESD items in ESD protected area
  • Static dissipative
    Superior choice over blue and pink poly bags
  • Intrinsically antistatic, low charging properties
    Bag contents will not electrostatically charge during movement
  • Intrinsically static dissipative properties
    Not topically treated, not humidity dependent, won’t wear off
  • Ultra clear structure
    Maximum optical clarity allowing Bar Code reading, eliminating need to open bag
  • Flexible and heat sealable
    Maximum seal strength
  • Humidity independent
    Longer shelf life than pink poly
  • Manufactured on specially designed soft fold converting machine
    Prevents scratches and creases maintaining the electrical integrity of the bag
  • Large 3/8″ wide seals – high performance interior sealing layer
    Greater sealing surface provides greater seal strength compared to comparable products with 1/8″ wide seals; higher quality, more durable
  • Identified with ESD Protective Symbol as required by ANSI/ESD S541 with lot code #.
    Improved quality control tracking and identified as ESD packaging.
  • Lot coded
    Quality control traceability
  • Polycarbonate compatible containing no amines or N-octanic acid
    Non-corrosive, will not contaminate parts
  • Testable to industry standards
    Meets or exceeds one or more of the following standards: electrical and physical requirements of ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, EIA 625, MIL-STD-1686, and EIA 583
  • Includes Zipper
    Convenient recloseable seal; reusable
  • Resistance of outer and inner layer:
     <10E11 ohms
  • Lead-free RoHS compliant
  • Thickness: Nominal .0035″ (.0889) ± 10%
  • Sold in packages of 100 bags, packaged in a protective oversized ESD bag.
  • Made in the United States of America
    This item is made and stocked in Canton, MA

    Estimated Shipping Weight: 1.48 Pounds

ANSI/ESD S541 Section 6.2 Outside an EPA:

“Transportation of sensitive products outside of an EPA shall require packaging that provides:

1. Low charge generation

2. Dissipative or conductive materials for intimate contact

3. A structure that provides electrostatic discharge shielding.”

Desco’s bags are recyclable

Mixed unsortable plastic scrap shall contain assorted plastics of multiple grades that are co-extruded, bonded or laminated together which are unsortable into individual grades.

Desco ESD Bags Are Generally Reusable

For best results, bag inventory should be continually replenished. It is recommended that standard packs of bags should be stored in its original packaging in a climate controlled environment where the temperature ranges from 45 degrees F to 70 degrees F and relative humidity is 50%. Bags should not be stored in ultraviolet sunlight, moisture, or heat because the aluminum shielding layer could oxidize if exposed to these conditions.

We have no reports of degradation of ESD control properties of bags sealed in original standard pack packaging. Desco’s Limited Warranty expressly warrants that for a period of one (1) year from the date of purchase, Desco products will be free of defects in material (parts) and workmanship (labor). Before using and after one year from purchase date, users shall determine the suitability of the Statshield ESD Bags for their intended use. Users assume all risk and liability whatsoever in connection therewith. Mishandling or improper storage may render an ESD Bag unusable to perform its function. ESD Bags that are ripped, torn, or scratched should be discarded.

From ANSI/ESD S20.20 section 6.2.4.2. Packaging Guidance: “The objective of ESD protective packaging is to prevent a direct electrostatic discharge to the ESDS item contained within and allow for dissipation of charge from the exterior surface. In addition, the packaging should minimize charging of the ESDS item in response to an external electrostatic field and triboelectrification. They may also lose static shielding properties by crumpling, puncturing and folding.”

Some end users reuse a Statshield® Transparent Metal In ESD Shielding Bag up to six times and then discard.

Ideally, the user should test, auditing some percentage of the re-used ESD Bags using test procedures outlined in ANSI/ESD-S11.11 Surface Resistivity Standard, ANSI/ESD-S11.12 Volume Resistance Measurements of Static Dissipative Planar Materials, and Shielding Materials ANIS/ESD S11.31.

Desco’s only obligation shall be to replace such quantity of the product proved to be defective. See full Limited Warranty information.

“The Organization shall define ESD protective packaging for all ESD susceptible item material movement within Protected Areas, between job sites and field service operations.” See ANSI/ESD S20.20 section 6.2.4.1. Packaging Requirements.

“ESD susceptible items shall be packaged in ESD protective packaging while not in a Protected Area.” See ANSI/ESD S20.20 section 6.2.3.1.

Statshield® bags are packaged 100 per package in an oversized shielding bag rather than a cardboard box. Therefore, our bags are not exposed to water vapors that will degrade the metallized shielding layer. Our bags have an additional layer of barrier protection because of our packaging.
